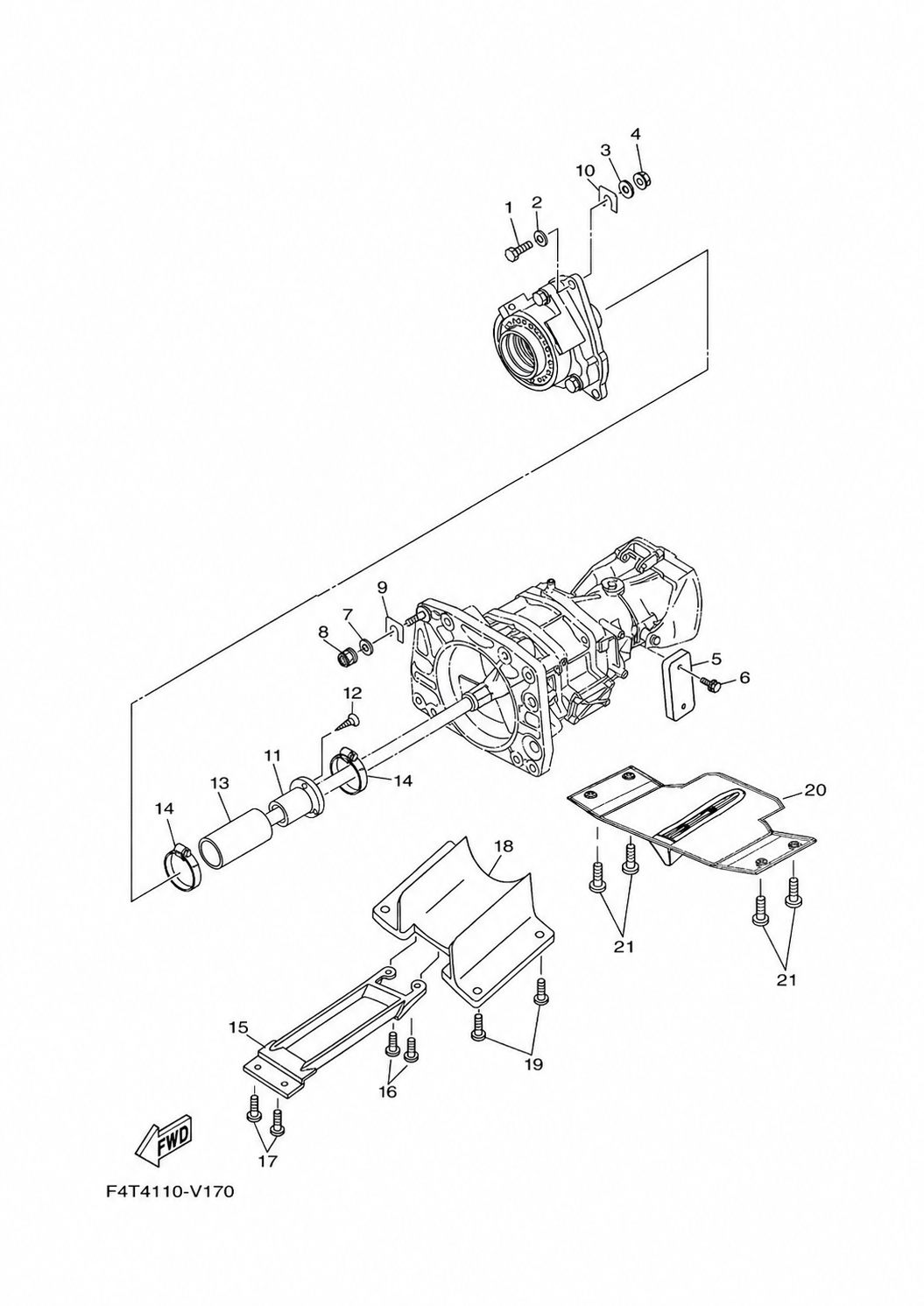

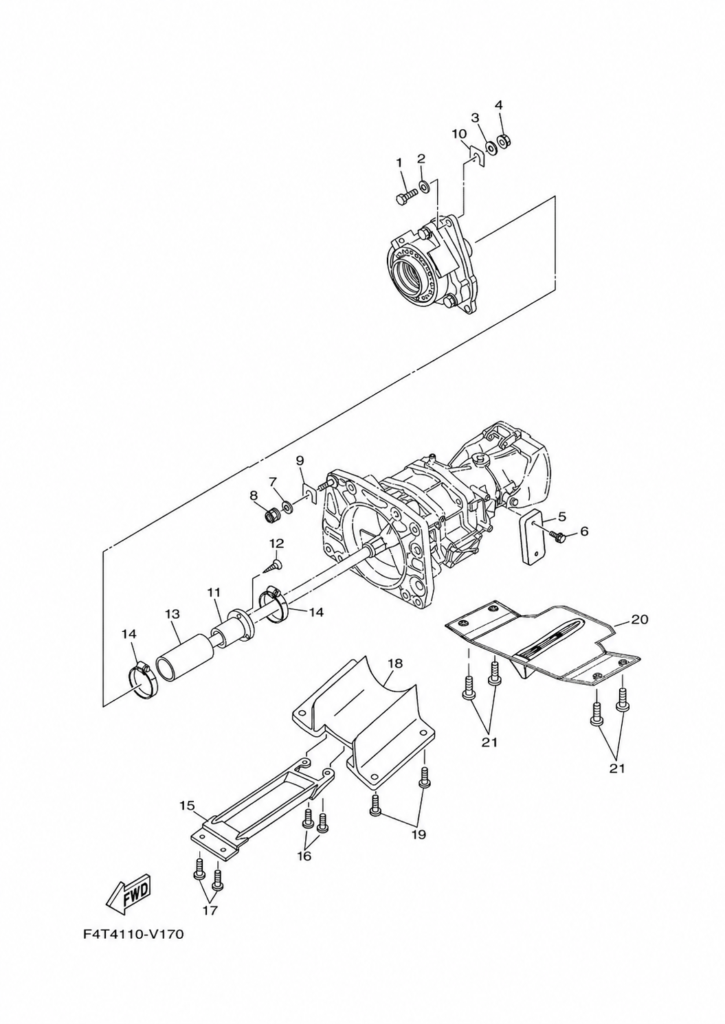

Yamaha 190FSH SPORT – UX1900B F7A2 Jet Unit 3 Diagram

Description
Price
Qty
1
BOLT
97080-08045-00
$ 6.64
2

WASHER
9299R-08600-00
$ 2.04
3

WASHER
90209-15SA4-00
$ 1.4
4

NUT,FLANGE
95780-08300-00
$ 10.77
5

ANODE (A006760850)
F3F-U7697-00-00
$ 21.98
6
BOLT, WITH WASH
90119-06894-00
$ 1.4
7
WASHER, PLATE
90201-10802-00
$ 0.81
8
NUT, SELF-LOCKING
90185-10816-00
$ 1.94
9, 10
SHIM (T=0.5)
GD0-U7249-00-05
$ 1.98
11
JOINT, PIPE
F2D-U883E-00-00
$ 16.85
12
SCREW, TAPPING
90167-08SA8-00
$ 1.03
13
PIPE 1
GU1-U883B-10-00
$ 13.18
14
HOSE CLAMP ASSY
90450-57802-00
$ 3.08
15
SCREEN,INTAKE
F4V-U72B7-00-00
$ 79.18
16
BOLT, HEXAGON SOCKET BUTTON BOLT
90111-08833-00
$ 2.41
17, 19, 21

BOLT, HEXAGON SOCKET BUTTON
90111-08832-00
$ 2.04
18
DUCT, INTAKE
F4V-U72B6-00-00
$ 213.62
20
PLATE 2
F4C-U273B-00-00
$ 180.29
